Parameter Files with Type Information

Parameter files are typically read in JAMS using the StandardEntityReader component from the J2000 repository. This component interprets data as Doubles or String values only. While this works for most numeric data, problems arise when components expect different data types, such as integers.

The Problem

Consider a scenario where sub-catchments need to link to specific runoff measurements. A parameter file might look like this:

#gauged subcatchments.par
ID gauging station    subBasinIDs             obsQcolumn
...
0  Arnstadt           [91,92,93,94,98,99,100] 1
1  Gehlberg           [98,99,100]             2
2  Graefinau Angstedt [64,65,66]              3

Each sub-catchment has an ID, gauging station name, sub-catchment IDs, and a column reference. The StandardEntityReader reads this file into an EntityCollection called “gauges.” A SpatialContext can then iterate over gauges to compute simulated stream-flow and efficiency measures. This can be done with the following sub-model:

GaugeContext
Figure 1 – GaugeContext

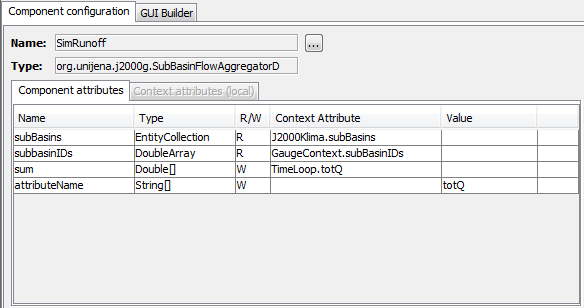

The GaugeContext iterates through sub-catchments, with a SubBasinFlowAggregator summing runoff from multiple sub-catchments into a total value stored as totQ.

SubbasinFlowAggregator
Figure 2 – SubbasinFlowAggregator

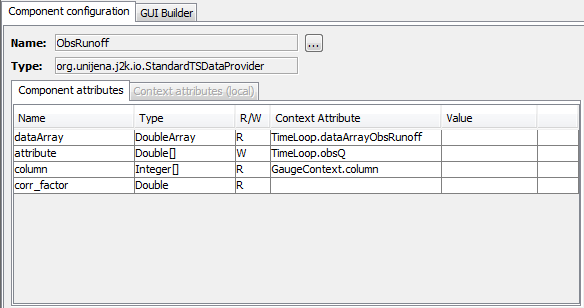

The obsRunoff component (StandardTSDataProvider) selects a specific index from a DoubleArray using the column ID to retrieve observed runoff data (obsQ).

StandardTSDataProvider
Figure 3 – StandardTSDataProvider

The core issue: StandardTSDataProvider expects an integer, but the parameter file provides a double value.

Possible Solutions

  1. Create a new component converting double to integer (useful generally, but enlarges the model)
  2. Write a specialized StandardTSDataProviderDoubleVersion (works, but creates repository bloat)

The Solution: Type Support

Since version 3.0_b12, users can add a #TYPED comment to parameter files. This tells the EntityReader to expect an additional header line defining data types.

Supported types include: Double, DoubleArray, Float, FloatArray, Integer, IntegerArray, Long, LongArray, String, Calendar, TimeInterval, Boolean, and BooleanArray.

The updated parameter file:

#gauged subcatchments.par
#TYPED
ID     gauging station    subBasinIDs             obsQcolumn
Double String             DoubleArray             Integer
...
0      Arnstadt           [91,92,93,94,98,99,100] 1
1      Gehlberg           [98,99,100]             2
2      Graefinau Angstedt [64,65,66]              3
